Pyrotex Aerospace-grade Braid Firesleeve

Aerospace-grade Braid Firesleeve – Product Overview

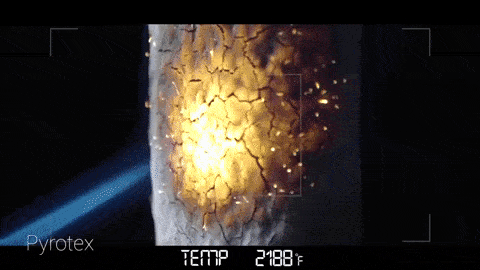

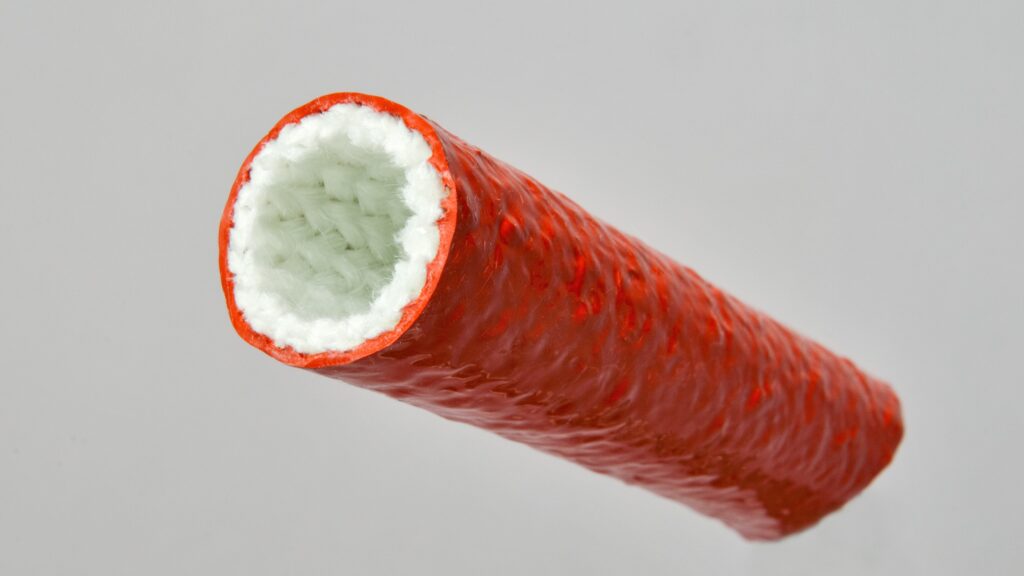

Aerospace-grade FiresleeveAtlantex’s Aerospace-grade braided Pyrotex Firesleeve has been optimized to provide superior protection to critical hoses, cables, tubes, wires, and assemblies in environments where high heat, direct flame, and molten splash pose system hazards. Aerospace-grade Pyrotex firesleeve is manufactured with a robust and highly flexible braided fiberglass insulating substrate which has been coated with a thick layer of our specialized Silicone polymer to allow for 500°F continuous exposure and intermittent molten splash protection up to 2200°F.

Insulate systems to prevent personnel injury, minimize energy loss, maintain internal temperature, reduce system downtime, and extend the service life of critical lines. Atlantex’s proprietary Silicone polymer forms a self-extinguishing refractory layer, and will not melt, burn, support combustion, or emit toxic smoke. Aerospace-grade Pyrotex Firesleeve is resistant to common industrial, automotive, and marine fluids and provides good abrasion/wear resistance.

Pyrotex Firesleeve offers reliable system protection across a wide range of applications and industries, including industrial, foundry, automotive, transportation, defense, equipment, MRO, and many others. Pyrotex Firesleeve is available in many colored coatings and can be custom printed for private brand development or line identification. Contact the Atlantex Customer Service Team for additional information.

Downloads

Pyrotex Aerospace-grade Braid Firesleeve Data Sheet

Material Safety Data Sheet

UL Certification

PYROTEX AEROSPACE-GRADE BRAID FIRESLEEVE

Working Temperature:
° F ° C
Continuous: 500 260
Short term: 2200 1200
Material Composition
Accreditations
Highly texturized E-Glass fiber SAE AS1072 Compliant
Densely braided insulating substrate UL 1441 Recognized Component*
High-temperature Silicone polymer VW-1 Flame Rated
Various colored coatings available REACh & RoHS Compliant**
* See UL Certification for more information
** See REACh / RoHS declaration for more information
Characteristics
Self-extinguishing thick-walled insulating sleeve for excellent thermal protection
Sheds molten metal splash instantly and resists direct flame impingement
Lightweight and highly flexible composite protective sleeve with exceptional elasticity
Will not melt, burn, support combustion, or emit toxic smoke
Resistant to hydraulic fluids, fuels, lubricating oil, and water
Extends service life of assemblies and provides personnel protection
Availability
Pyrotex Aerospace-grade Braid is a stock product, allowing for a fast turnaround time
Bulk lengths available for scrap minimization
Firesleeve is supplied in 50 ft. coils and 100 ft. boxes standard
Available in diameters from 1/4″ (6mm) to 6″ (152mm)
Available in standard RIO, other colors are available upon request
Atlantex Available Colors*: Replace “-##” in part number with:
-10 Red Iron Oxide (RIO)
-20 Aluminized
-30 Black
-50 Yellow
-60 Blue
-70 Red
-80 Green
 Pyrotex Aerospace-grade Braid Firesleeve – Part Numbers
Sleeve ID** Standard Lengths Part Numbers
1/4″ 6 mm 50 ft. coils or 100 ft. boxes PT04200-##
5/16″ 8 mm 50 ft. coils or 100 ft. boxes PT05200-##
3/8″ 10 mm 50 ft. coils or 100 ft. boxes PT06200-##
7/16″ 11 mm 50 ft. coils or 100 ft. boxes PT07200-##
1/2″ 13 mm 50 ft. coils or 100 ft. boxes PT08200-##
9/16″ 14 mm 50 ft. coils or 100 ft. boxes PT09200-##
5/8″ 16 mm 50 ft. coils or 100 ft. boxes PT10200-##
11/16″ 17 mm 50 ft. coils or 100 ft. boxes PT11200-##
3/4″ 19 mm 50 ft. coils or 100 ft. boxes PT12200-##
7/8″ 22 mm 50 ft. coils or 100 ft. boxes PT14200-##
1″ 25 mm 50 ft. coils or 100 ft. boxes PT16200-##
1-1/8″ 29 mm 50 ft. coils or 100 ft. boxes PT18200-##
1-1/4″ 32 mm 50 ft. coils or 100 ft. boxes PT20200-##
1-3/8″ 35 mm 50 ft. coils or 100 ft. boxes PT22200-##
1-1/2″ 38 mm 50 ft. coils or 100 ft. boxes PT24200-##
1-5/8″ 41 mm 50 ft. coils or 100 ft. boxes PT26200-##
1-3/4″ 44 mm 50 ft. coils or 100 ft. boxes PT28200-##
1-7/8″ 48 mm 50 ft. coils or 100 ft. boxes PT30200-##
2″ 51 mm 50 ft. coils or 100 ft. boxes PT32200-##
2-1/8″ 54 mm 50 ft. coils or 100 ft. boxes PT34200-##
2-1/4″ 57 mm 50 ft. coils or 100 ft. boxes PT36200-##
2-3/8″ 60 mm 50 ft. coils or 100 ft. boxes PT38200-##
2-1/2″ 64 mm 50 ft. coils or 100 ft. boxes PT40200-##
2-5/8″ 67 mm 50 ft. coils or 100 ft. boxes PT42200-##
2-3/4″ 70 mm 50 ft. coils or 100 ft. boxes PT44200-##
2-7/8″ 73 mm 50 ft. coils or 100 ft. boxes PT46200-##
3″ 76 mm 50 ft. coils or 100 ft. boxes PT48200-##
3-1/4″ 83 mm 50 ft. coils or 100 ft. boxes PT52200-##
3-1/2″ 89 mm 50 ft. coils or 100 ft. boxes PT56200-##
3-3/4″ 95 mm 50 ft. coils or 100 ft. boxes PT60200-##
4″ 102 mm 50 ft. coils or 100 ft. boxes PT64200-##
4-1/2″ 114 mm 50 ft. coils PT72200-##
5″ 127mm 50 ft. coils PT80200-##
6″ 152mm 50 ft. coils PT96200-##

*Minimums do apply for Colored Pyrotex Braid Firesleeve.
**Nominal ID – Not Lay flat
Need Pricing? To request a quote or discuss specifications please take a moment to fill out our Request a Quote form.
If you would like to request a sample, please do by filling out the Request a Sample Form.
Additional Questions? Give us a call at (610) 518-6601, or email us at CustomerService@atlantexmfg.com.
iso_9000_2008
Atlantex Manufacturing operates a Quality Management System which complies with the requirements of ISO 9001:2008.

AMC certifies that all of our products designated as RoHS Compliant conform to the requirements of EC Directive 2011/65/EU (RoHS).

Pyrotex Aerospace-grade Braided Firesleeve is a UL-Recognized Component, and is among the world’s first firesleeves to achieve UL recognition, per UL Standard 1441.
