Pyrotex End Dip

Pyrotex End Dip - High Temperature Silicone Coating

High Temperature Silicone Coating – Product Overview

Pyrotex End Dip is a fast curing one-part silicone RTV coating which is primarily used to seal the ends of Pyrotex Firesleeve to prevent fluid wicking, contamination, and fraying of sleeve ends. Cured Pyrotex End Dip creates a durable yet flexible seal which is resistant to temperatures up to 500°F, liquid penetration, moisture, UV, and weathering, making it an ideal tool for use in industrial and automotive applications.

Pyrotex End Dip fully cures at room temperature in the presence of ambient humidity with no need to heat, and dipped pieces can be handled in as little as 90 minutes. The instant adhesion and fast cure time make Pyrotex End Dip easy to process in both large-scale and small-scale production environments, using both manual application and automated dispensing equipment.


Pyrotex End Dip Data Sheet

Pyrotex End Dip SDS



Reduces end fray and fluid wicking.


SAE AS1072 compliant end sealant


High temperature industrial coating.


End dip supplied as one-part liquid. Quart and gallon sizes available.

Working Temperature
-50°F to 500°F
Material Composition Product Features
1-part Liquid Silicone Coating Fast cure time at room temperature
Excellent adhesion without priming
Resists fluids and high temperatures
Non-corrosive composition
High-temperature silicone RTV coating used to seal ends of Pyrotex Firesleeve products
Offers excellent adhesion and rapid cure time
Resists high temperatures, moisture, UV, ozone, and weathering when cured
Reduces end fray and fluid wicking for textile products
Used alongside Aerospace-grade Pyrotex Firesleeve in AS1055 assemblies
Curing Information
10 to 20 minute working time
30 to 60 minute tack free time
24 hour full cure time
Cure speed increases with elevated humidity and temperature
End sealing for Pyrotex sleeving and blanket
High temperature industrial coating
Reduces end fray and fluid wicking
SAE AS1072 compliant end sealant
End dip supplied as one-part liquid
Quart and gallon sizes available
Red Iron Oxide and Black colors available
Pyrotex End Dip – Part Numbers
Container Size
RIO Color
Black Color

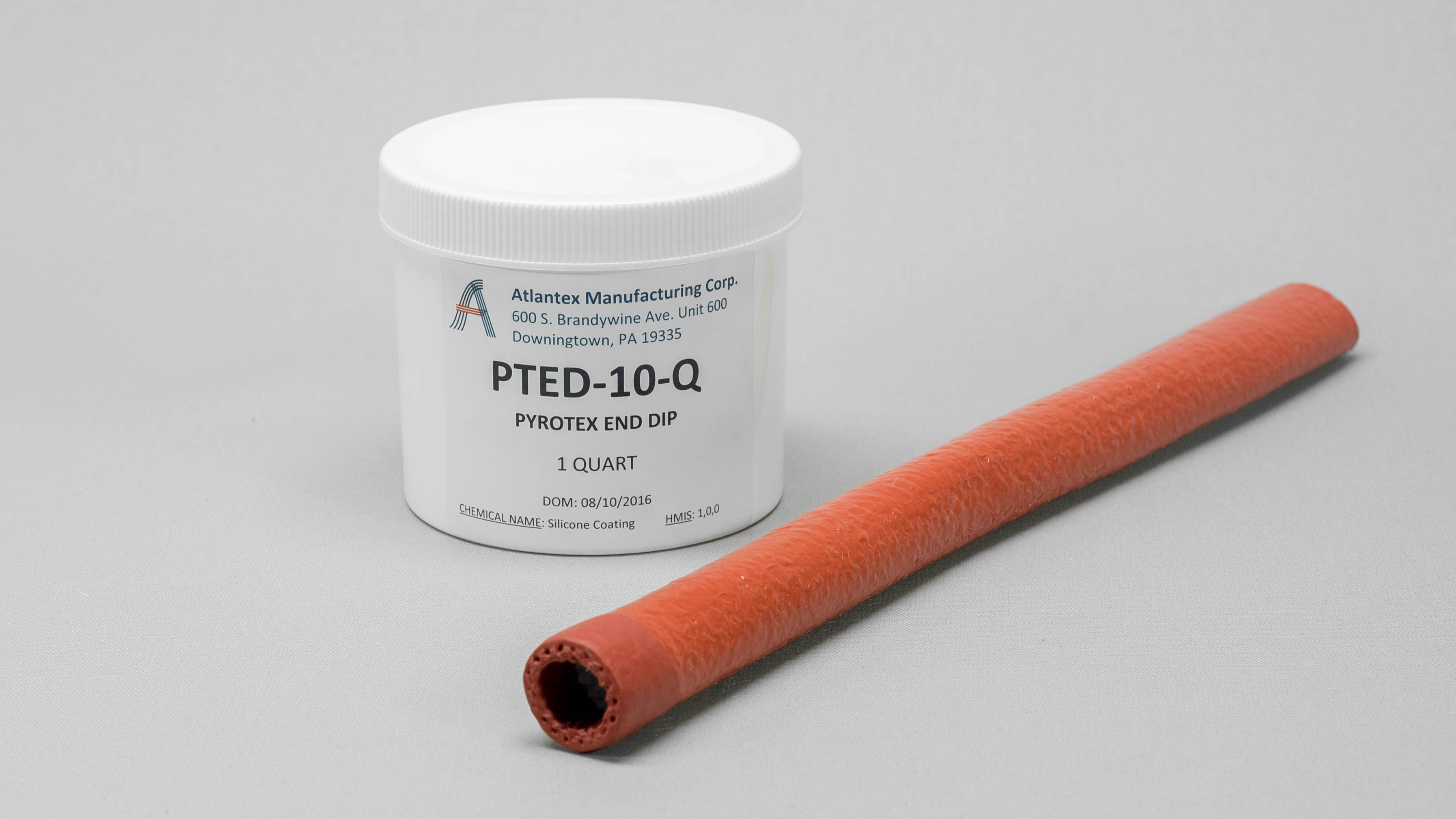

1 Quart (0.95 Liter) PTED-10-Q PTED-30-Q
1 Gallon (3.78 Liter) PTED-10-G PTED-30-G
