Pyrotex Firesleeve SG Thermal Tape

atlantex-pyrotex-sg-tape2Thermal Wrap – Product Overview

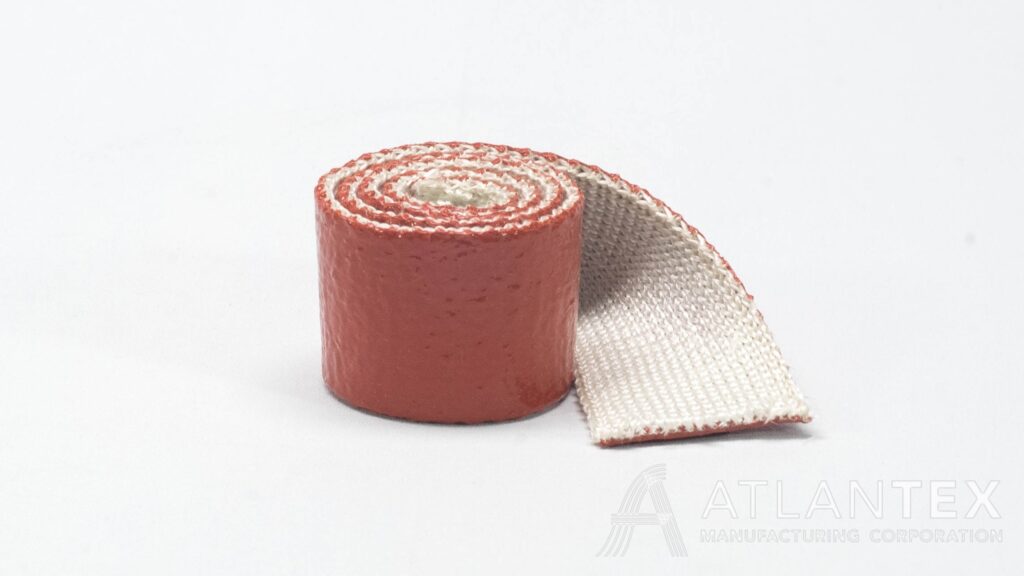

Atlantex’s Pyrotex Firesleeve SG Thermal Tape is a versatile protection and maintenance solution which provides the trusted performance of Pyrotex SG Firesleeve in a convenient and easy to install tape construction. Pyrotex SG Tape is ideal for wrapping foundry systems, high temperature piping, irregularly shaped systems, and components with a large O.D. Utilizing the same silicone polymer as Pyrotex Firesleeve, Pyrotex SG Thermal Tape offers excellent resistance to molten splash and direct flame.

Preserve uptime, reduce downtime, reduce hose replacement expenditures, and prevent personnel injury by protecting lines with Pyrotex SG Tape.

Downloads

Pyrotex S/G Thermal Tape Data Sheet

Material Safety Data Sheet

PYROTEX FIRESLEEVE SILICONE THERMAL TAPE

Working Temperature: ° F ° C
Continuous: 500 260
Short term: 2200 1200
Material Composition Added Value
Highly texturized E-Glass fiber tape Install without disconnecting lines
Expertly woven insulating substrate REACh & RoHS compliant
High-temperature Silicone polymer Bulk lengths available to reduce scrap
Various colored coatings available Extensive stock for short lead times
Characteristics
Self-extinguishing Silicone-coated insulating tape for versatile thermal protection
Sheds molten metal splash and resists direct flame impingement
Lightweight and highly flexible – ideal for large diameters or irregularly-shaped systems
Will not melt, burn, or support combustion- does not emit toxic smoke
Resistant to hydraulic fluids, fuels, lubricating oil, and water
Extends service life of assemblies and provides personnel protection
Availability
 Protex SG Tape is supplied in 100 ft. rolls
 Protex SG Tape is available in diameters 1″ (25mm) to 5″ (127mm)
 Stock product for fast turnaround
 RIO Color standard, other colors available upon request
Atlantex Available Colors: Replace “-##” in part number with:
-10 Red Iron Oxide (RIO)
-20 Aluminized
-30 Black
-50 Yellow
-60 Blue
-70 Red
-80 Green
Pyrotex SG Tape – Part Numbers
Width Thickness Standard Roll Lengths Part Number
1″ 1/8″ 100ft. Rolls PT16700-##
2″ 1/8″ 100ft. Rolls PT32700-##
3″ 1/8″ 100ft. Rolls PT48700-##
4″ 1/8″ 50ft. Rolls PT64700-##
5″ 1/8″ 50ft. Rolls PT80700-##

If you would like to request a sample, please do by filling out the Request a Sample Form.
Additional Questions? Give us a call at (610) 518-6601, or email us at CustomerService@atlantexmfg.com.
