Pyrotex S/G Thermal Rope - Atlantex Manufacturing Corp.Thermal Rope – Product Overview

Atlantex manufactures a variety of standard ropes for high heat and thermal process applications.

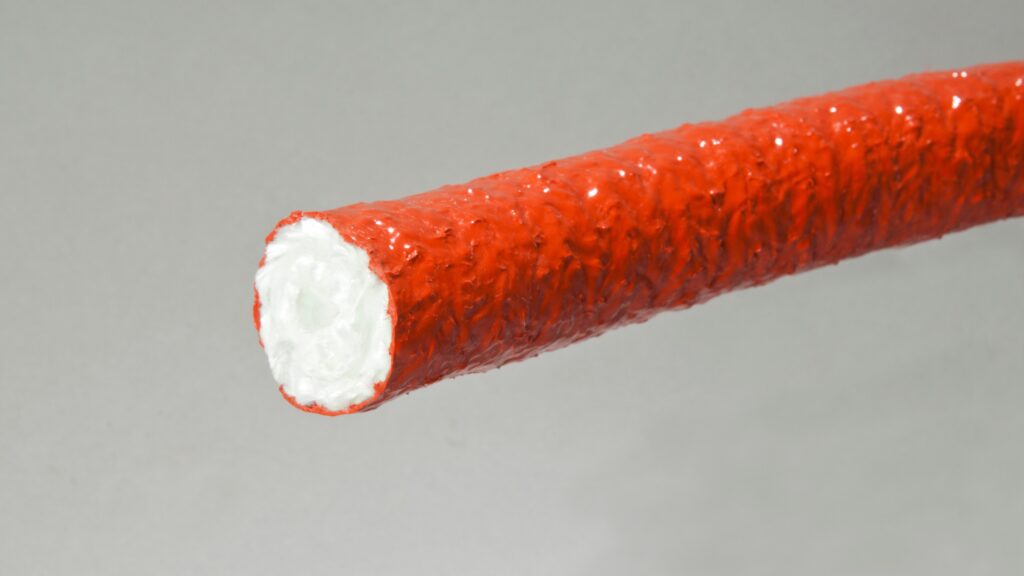

Pyrotex SG Ropes are manufactured using a high-density fiberglass rope which has been coated in Atlantex’s Silicone polymer to produce a highly flexible, extremely strong and resilient rope, resistant to flame and molten splash, ideal for high temperature environments.

Applications

Boiler doors, Coke ovens, Wood stoves, Kiln car seals, Packing insulation material, High-temperature lacing, Industrial ovens, Pot lid seals.

Downloads

Pyrotex S/G Rope Data Sheet

Material Safety Data Sheet

PYROTEX S/G THERMAL ROPE

Working Temperature:
° F ° C
Continuous: 500 260
Short term: 2200 1200
Material Composition
Added Value
Texturized E-Glass fiber rope Heavy-duty industrial gasket
High-density rope insulation REACh & RoHS compliant
 High temperature Silicone polymer Bulk lengths available to reduce scrap
Various colored coatings available Pre-cut pieces available upon request
Characteristics
Self-extinguishing Silicone-coated insulating rope for heavy-duty thermal protection
Sheds molten splash and resists direct flame impingement
Lightweight & highly flexible – ideal for demanding industrial applications
Will not melt, burn, or support combustion — does not emit toxic smoke
Resistant to hydraulic fluids, fuels, lubricating oil, and water
Long-wearing, heavy duty gasket often used in metals production
Availability
Pyrotex SG Rope is available in bulk lengths for scrap minimization, and in pre-cut pieces upon request
Stock product for fast turnaround
Protex SG Rope is available in diameters 1/2″ (13mm) to 1-1/4″ (32mm)
RIO Color standard, other colors available upon request
Atlantex Available Colors: Replace “-##” in part number with:
-10 Red Iron Oxide (RIO)
-20 Aluminized
-30 Black
-50 Yellow
-60 Blue
-70 Red
-80 Green
Pyrotex SG Rope – Part Numbers
Size Part Number
1/2″ PT08300-10
3/4″ PT12300-10
1″ PT16300-10
1-1/4″ PT20300-10

Need Pricing? To request a quote or discuss specifications please take a moment to fill out our Request a Quote form.
If you would like to request a sample, please do by filling out the Request a Sample Form.
Additional Questions? Give us a call at (610) 518-6601, or email us at CustomerService@atlantexmfg.com.
