Pyrotherm & Pyrotex Double Layer Firesleeve Installation Tutorial

Pyrotherm & Pyrotex Double Layer Firesleeve Installation Tutorial

step-1-required-tools-with-numbers

STEP 1: Required Tools

STEP 1 : REQUIRED TOOLS

  1. Pyrotherm HW Sleeving
  2. Pyrotex Firesleeve
  3. Pyrotex SA Tape
  4. Electrical Tape
  5. Scissors
  6. Hose Assembly
step-2-sleeve-assembly-with-pyrotherm-hw

STEP 2: SLEEVE ASSEMBLY WITH PYROTHERM HW

STEP 2 : SLEEVE ASSEMBLY WITH PYROTHERM HW HEAVYWALL

Slide Pyrotherm HW over one end of hose assembly and along the hose length until sleeve end reaches the opposite hose end. Cap hose ends to prevent intrusion of glass fibers. Terminate ends of metal braided hose to prevent snagging of insulation.

step-3-tape-off-pyrotherm-hw-end

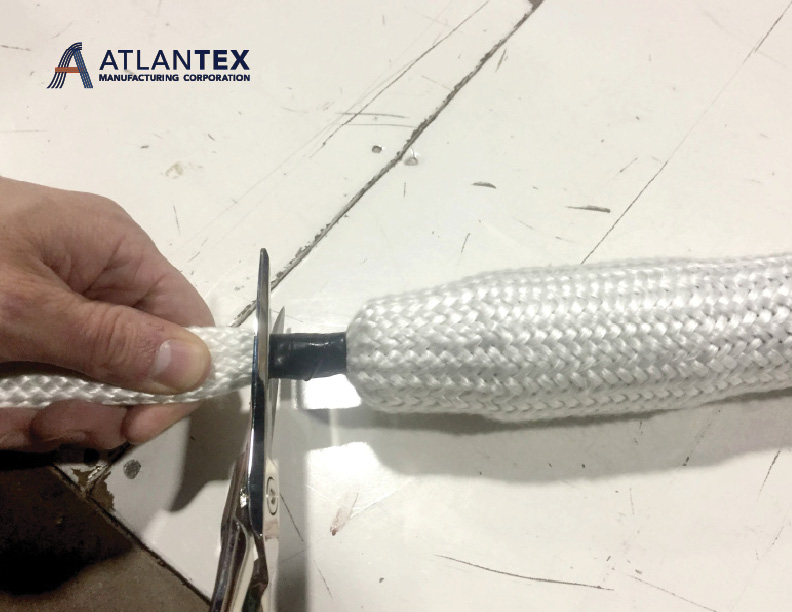

STEP 3: TAPE OFF PYROTHERM HW END

STEP 3 : TAPE OFF PYROTHERM HW HEAVYWALL END

Once hose length is fully sleeved with Pyrotherm HW, tightly tape off sleeving past hose end and cut at tape.

step-4-sleeve-assembly-with-pyrotex-firesleeve

STEP 4: SLEEVE ASSEMBLY WITH PYROTEX FIRESLEEVE

STEP 4 : SLEEVE ASSEMBLY WITH PYROTEX FIRESLEEVE

Cut Pyrotex Firesleeve to required length. Slide Pyrotex Firesleeve end over taped end of Pyrotherm HW. Pyrotex Firesleeve should not fit too tightly- use a larger ID sleeve if so. This will make installation difficult and can compromise insulating performance.

step-5-trim-hw-base-layer-to-length1

step-5-trim-hw-base-layer-to-length2

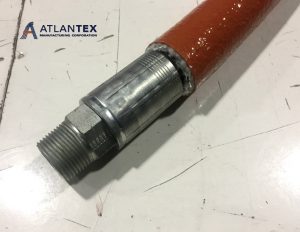

STEP 5 : TRIM HW BASE LAYER TO LENGTH

Once completely firesleeved, cut Pyrotherm HW base layer with scissors along the end of Pyrotex Firesleeve top layer. Be careful if using a rubber hose.

step-6-finish-sleeve-ends-with-pyrotex-sa-tape1 step-6-finish-sleeve-ends-with-pyrotex-sa-tape2

STEP 6 : FINISH SLEEVE ENDS WITH PYROTEX SA TAPE

Cut SA Tape to length and remove film backer. Stretch tape and wrap using a 50% overlap. Wrap tape up past sleeve ends to hose fitting and squeeze tape to seal.
