Pyrotherm HT
Heat-Treated Sleeve – Product Overview

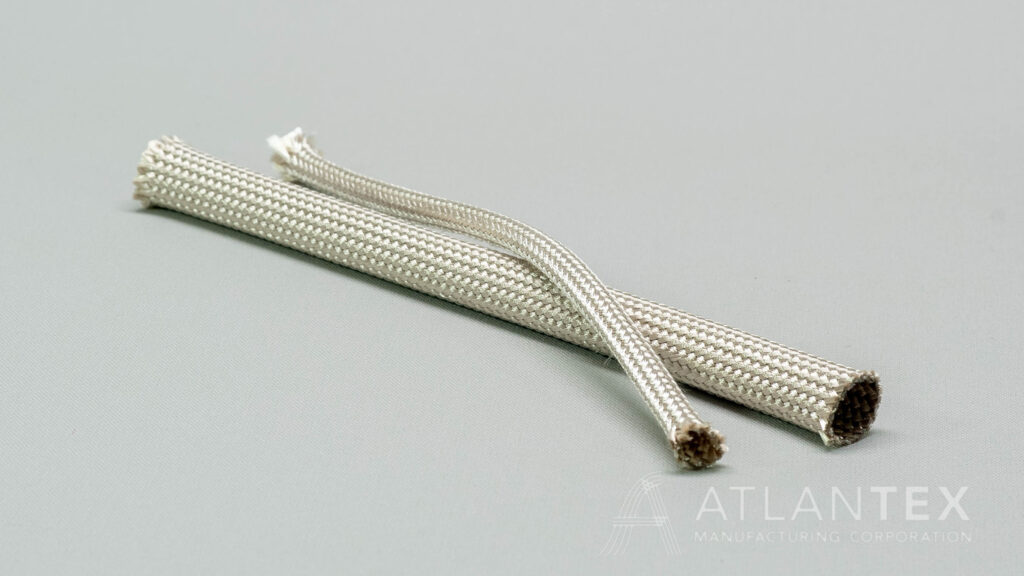

Pyrotherm HT sleeving provides an attractive heat-treated thermal protection and insulation solution for assemblies in many applications and industries. Manufactured with continuous filament E-Glass which has been tightly braided and heat treated to remove processing oils and residual organic binders, Pyrotherm HT provides reliable thermal protection and insulation with minimal smoking and off-gassing at temperature extremes.
Pyrotherm HT withstands continuous exposure to temperatures of 1000°F, is resistant to common industrial fluids and chemicals, and is a completely asbestos-free, non-hazardous insulation sleeve. Pyrotherm HT is used to protect hoses, wires, cables, and assemblies in industrial, automotive, and appliance applications.
Downloads
| Working Temperature |
° F |
° C |
| Continuous: |
1000 |
535 |
Material Composition
|
Added Value |
| Continuous filament E-Glass fiber |
REACh & RoHS compliant |
| Tightly braided insulating substrate |
Extensive stock for short lead times |
| Heat-treatment reduces off-gassing |
Economical system protection |
| Extremely expandable and flexible |
Conformable & attractive finish |
Characteristics
|
| Flexible and lightweight protective sleeve heat-cleaned to reduce off-gassing of residual organics |
| Protects assemblies from thermal degradation in industrial, automotive, and appliance applications |
| Continuous-filament E-Glass braid provides extraordinary expansion and conformability |
| Good resistance to most common industrial chemicals and solvents |
Availability
|
| Pyrotherm HT is a stock product, allowing for fast turnaround time |
| Bulk lengths available for scrap minimization |
| Available in diameters 1/2″ Nominal ID (13mm) to 4″ ID (102mm) |
| Available in natural tan color |
| Pyrotherm HT – Part Numbers |
| Sleeve ID* |
Size |
Standard Lengths** |
Part Number |
| 1/2″ |
-8 |
Long, random lengths |
HT08201 |
| 5/8″ |
-10 |
Long, random lengths |
HT10201 |
| 3/4″ |
-12 |
Long, random lengths |
HT12201 |
| 7/8″ |
-14 |
Long, random lengths |
HT14201 |
| 1″ |
-16 |
Long, random lengths |
HT16201 |
| 1-1/4″ |
-20 |
Long, random lengths |
HT20201 |
| 1-3/8″ |
-22 |
Long, random lengths |
HT22201 |
| 1-1/2″ |
-24 |
Long, random lengths |
HT24201 |
| 2″ |
-32 |
Long, random lengths |
HT32201 |
| 2-1/4″ |
-36 |
Long, random lengths |
HT36201 |
| 2-1/2″ |
-40 |
Long, random lengths |
HT40201 |
| 3″ |
-48 |
Long, random lengths |
HT48201 |
| 4″ |
-64 |
Long, random lengths |
HT64201 |
*Nominal ID – Not Lay flat.
** Supplied in long, random lengths. Consult factory for specific length.
